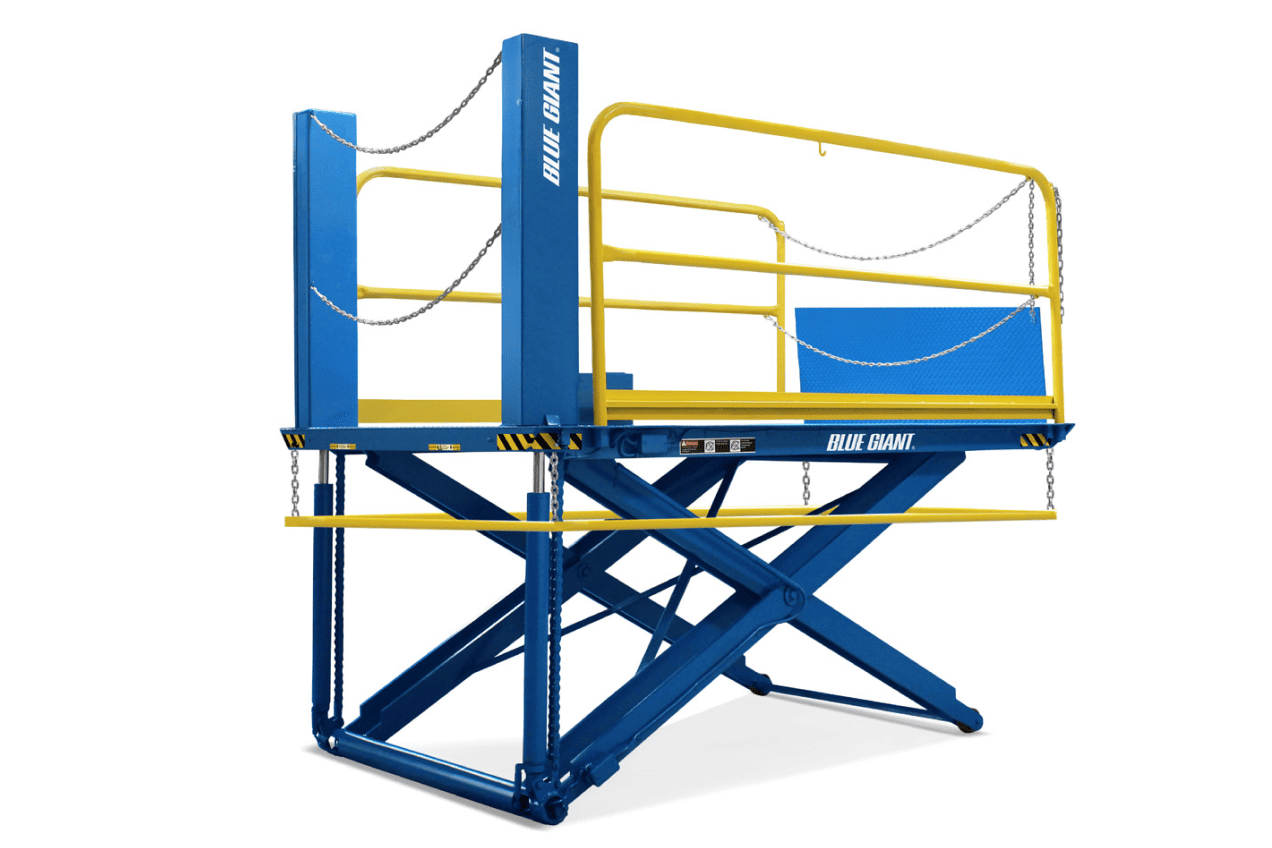

LOMASTER™ Low Profile - S

Overview

In the event you find the cost of forming a concrete pit/pad expensive, an economical solution is a LoMaster™ S-Series Semi-Portable Dock Lift. The unit is installed at the dock face and mounted on locating cradles and wear plates. With its extremely low profile, the LoMaster™ S Series provides added versatility for ground level loading or unloading operations.

Available in rated capacities of 4,000 to 6,000lbs (1,818 to 2,727kgs)

QUALITY CONSTRUCTION AND LOADING VERSATILITY

The same high quality construction features found in the stationary models are incorporated into all LoMaster™ S Series lifts. Each lift cylinder is encased in a weather-resistant, all steel housing. Precision velocity fuses on each hydraulic cylinder eliminates platform free-fall. All hard chromed pivot points are fitted with lifetime-lubricated bearings or Teflon coated bronze bushings. Indicator sensor bars and high visibility striping provide four sided toe protection. Sturdy steel handrails with 4" (107 mm) kick plate and barrier chains on both ends provide added operator safety. An 18" (457 mm) long lip with lifting chain on the rolling end is standard.
