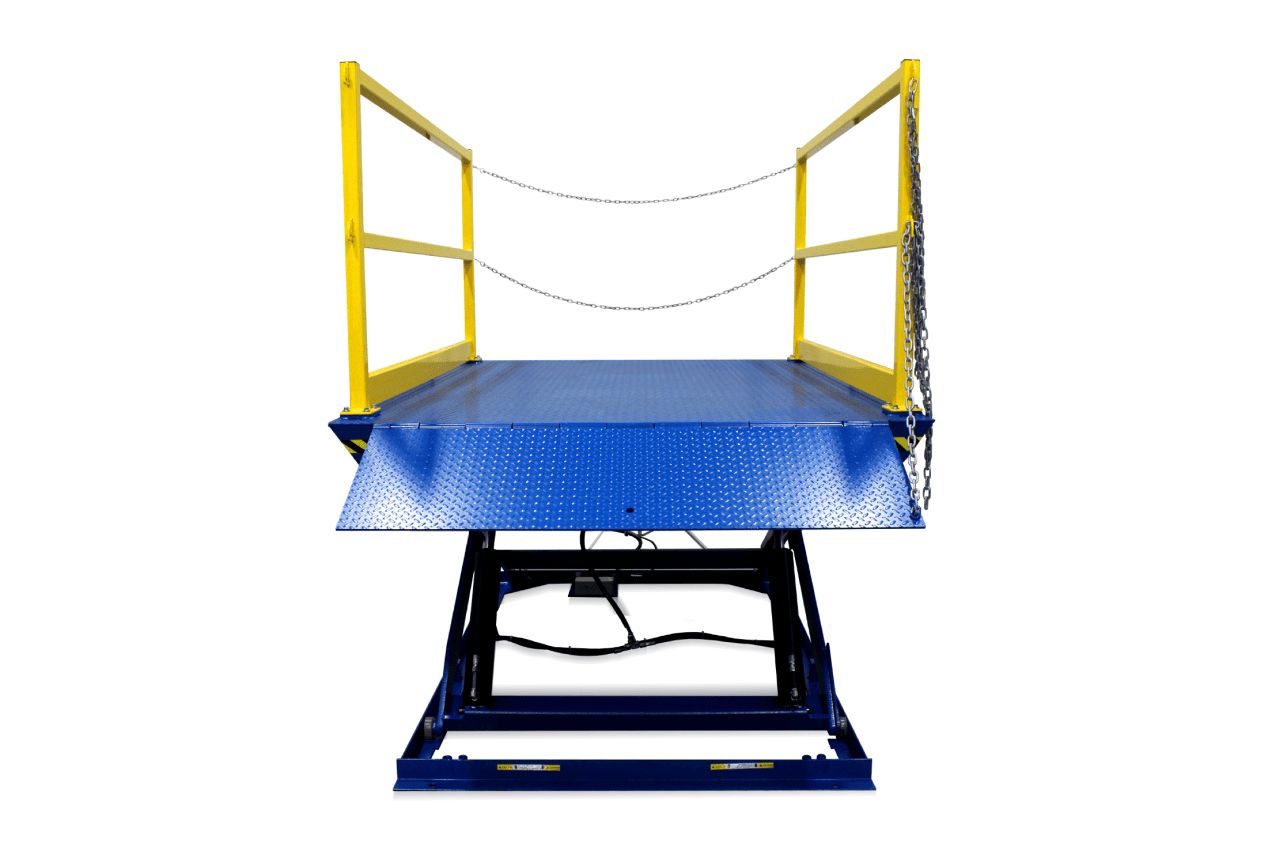

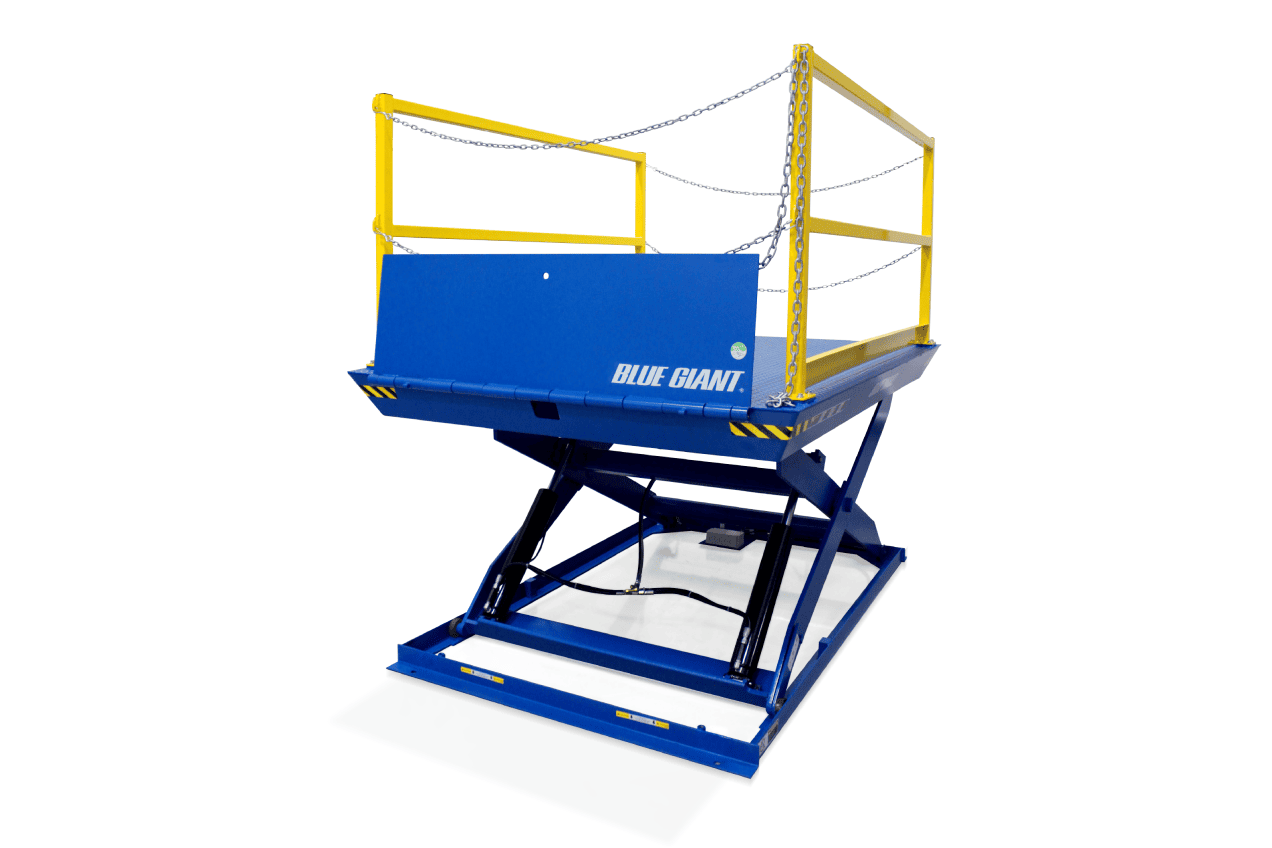

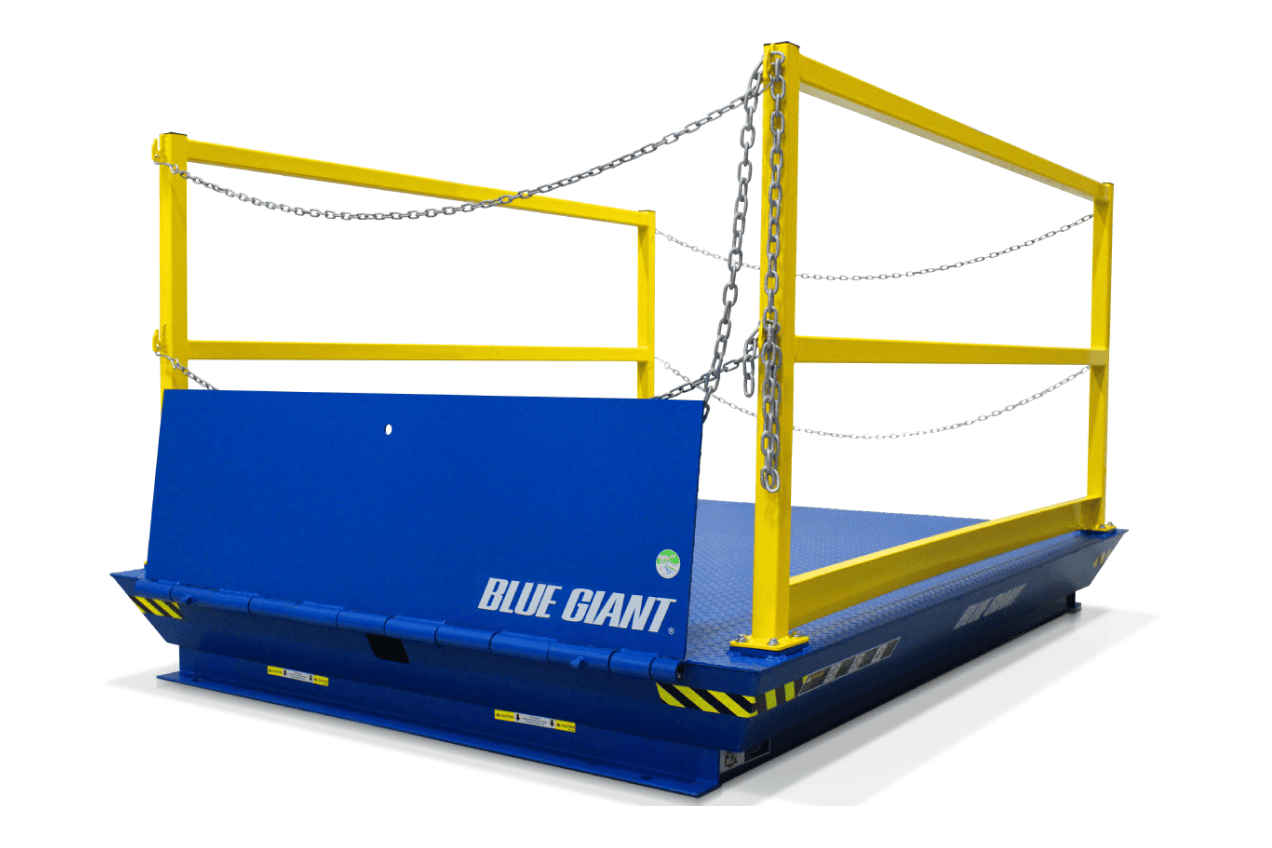

LOMASTER™ Stationary - DL

Overview

Loading Dock Lifts are more versatile than fork truck, faster and easier than manual loading and unloading, safer than ramps and inclines and less expensive than recessed truck wells.  The LoMaster™ Stationary Dock Lift will also greatly reduce handling costs, cargo damage and employee injury common to vertical transfer operations.

Available in rated capacities of 5,000 to 20,000 lb (2,267 to 9,072 kg)

QUALITY CONSTRUCTION AND LOADING VERSATILITY

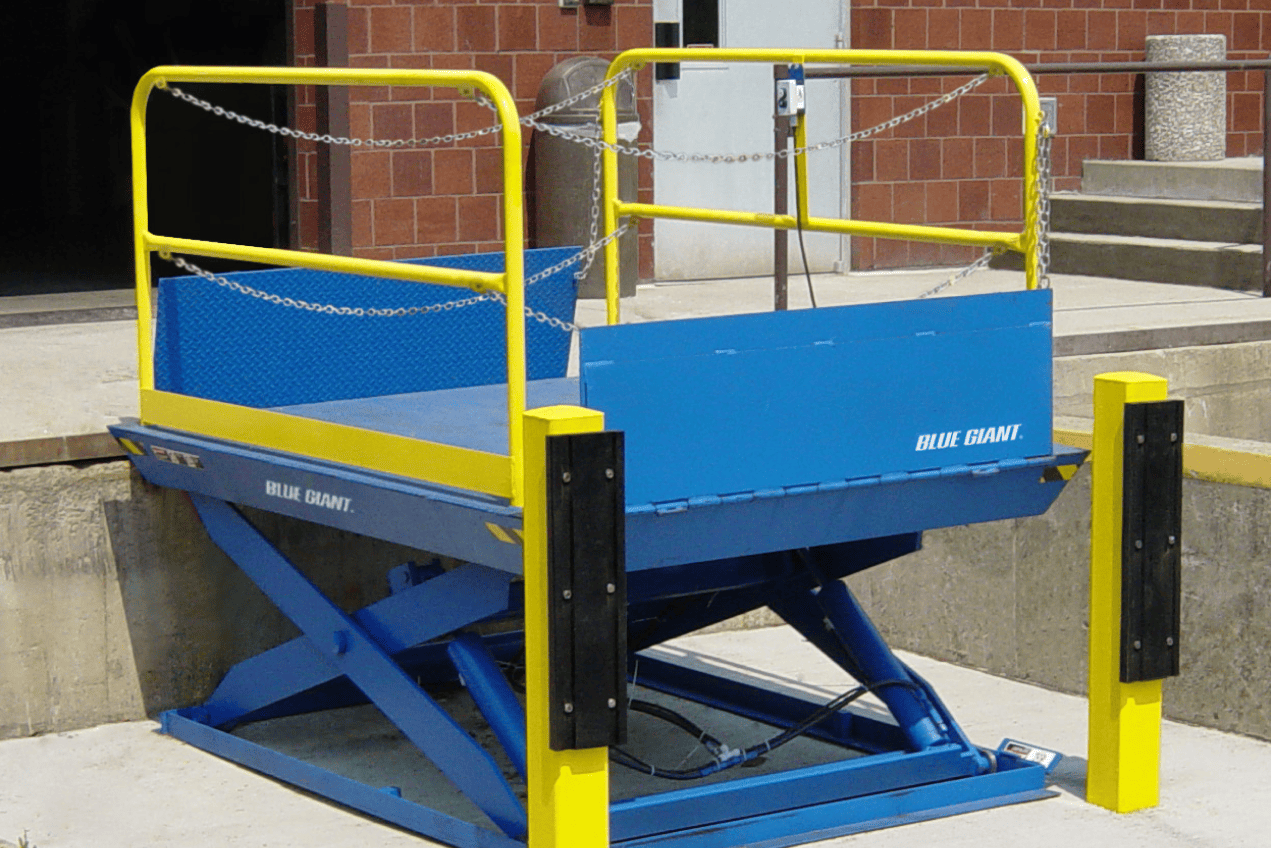

The LoMaster™ Dock Lift DL Series is engineered to increase efficiency and safety in loading / unloading trucks and trailers. These versatile units can be mounted in a pit or anchored to a concrete pad, wherever the site requires.

A full-length deck beam ensures maximum support, and solid plate steel legs support maximum rigidity. The precision safety velocity fuses on the hydraulic cylinders limit platform free-fall. Each dock lift comes equipped with handrails, a 4" (102 mm) kick plate, and a barrier chain across each end.
Contact Sales Contact Support

  • Deck widths range from 60" to 96" (1,524 to 2,438 mm)
  • Deck lengths 96" to 144" (2,438 to 3658 mm)
  • Remote power pack 12' (3,658 mm) hydraulic hose
  • Push button control on 12' (3,658 mm) straight cord
  • Hydraulic pump with built-in overload relief
  • All hydraulic components including hoses and oil

  • Custom sizes

  • Ground-level loading and unloading
  • Site conditions where no loading dock is present

  • Swing Gates with or without interlock
  • Electric toe guard protection
  • Accordion safety skirting
  • Mechanical pop-up run-off guard
  • Key switch on push button
  • Lip: split, hydraulic, spring assist, extended length, multiple
  • Low temperature oil
  • Immersion heater for oil reservoir
  • 3-10 HP remote powerpacks
  • Push button on coil cord
  • Deck mounted push button control
  • Weather Resistant Power Pack Cover
  • Warning Light/Horn
