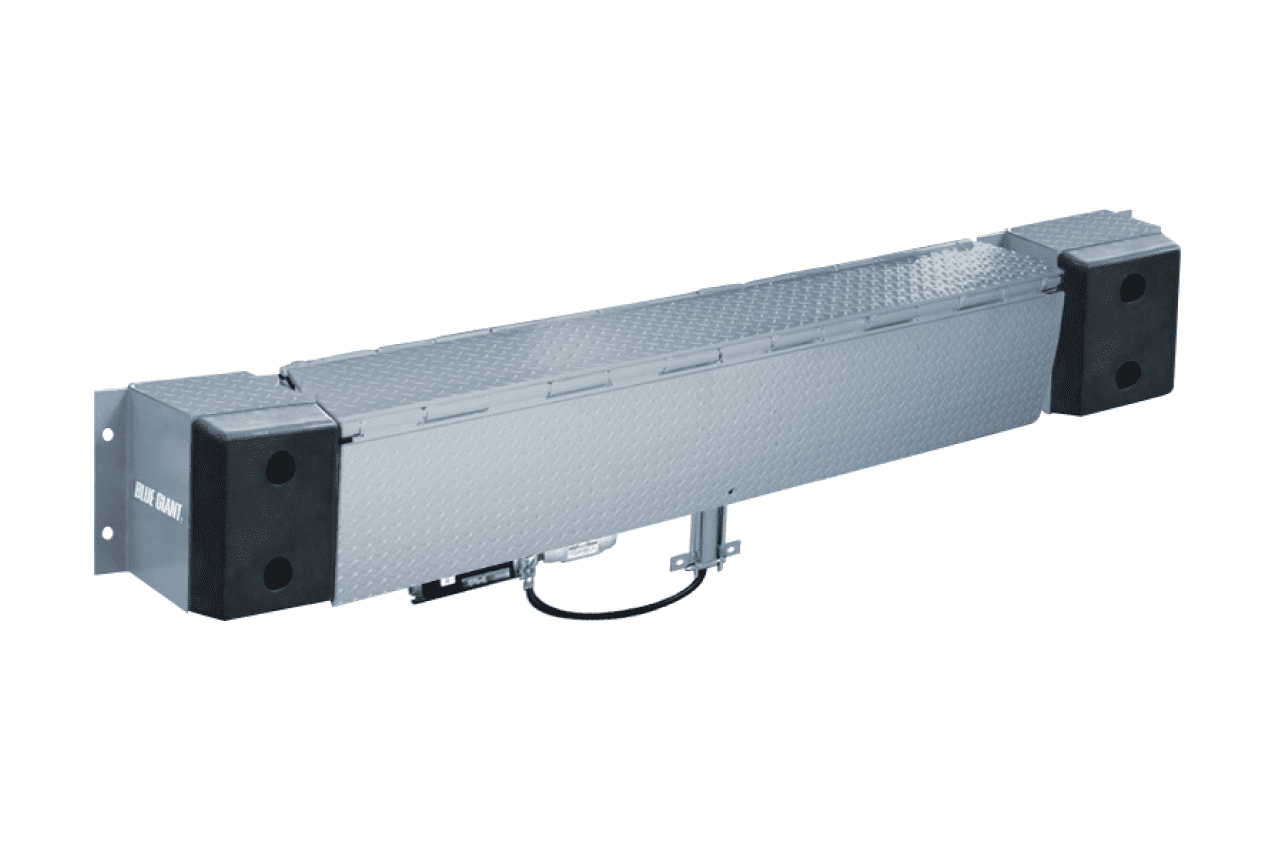

MD-CH Series Hydraulic Model

MD-CH Series Hydraulic Model

Overview

The MD-CH Series edge-of-dock leveler from Blue Giant is a high-performance hydraulic system ideally suited for applications where pit leveler installation is not feasible or standard fleet bed heights are serviced at the loading dock.

The MD-CH Series is easily installed to the dock face, providing an efficient self storing docking unit, replacing cumbersome dock plates.

Available in rated capacity of 30,000lbs (13,636kgs)

HYDRAULIC OPERATION

Deploys smoothly and easily at the touch of a button. A remotely mounted NEMA4-rated control station activates the deck and lip, readying the dock for use without any pulling or adjusting.

Contact Sales Contact Support

  • Cylinders and motor are pre-fitted to the dock assembly
  • Deck and lip plates made of premium grade 50,000 psi minimum yield
  • One-piece, continuous front and rear hinge pins for enhanced strength and durability
  • Lip bevel helps protect forklift tires and steering systems and cargo
  • Comfort grip handle doubles as a maintenance strut

  • 17" (432mm) lip for refrigerated applications
  • Two-piece face plate

  • Cylinders and motor are pre-fitted to the dock assembly
  • Deck and lip plates made of premium grade 50,000 psi minimum yield
  • One-piece, continuous front and rear hinge pins for enhanced strength and durability
  • Lip bevel helps protect forklift tires and steering systems and cargo
  • Comfort grip handle doubles as a maintenance strut

  • 17" (432mm) lip for refrigerated applications
  • Two-piece face plate
