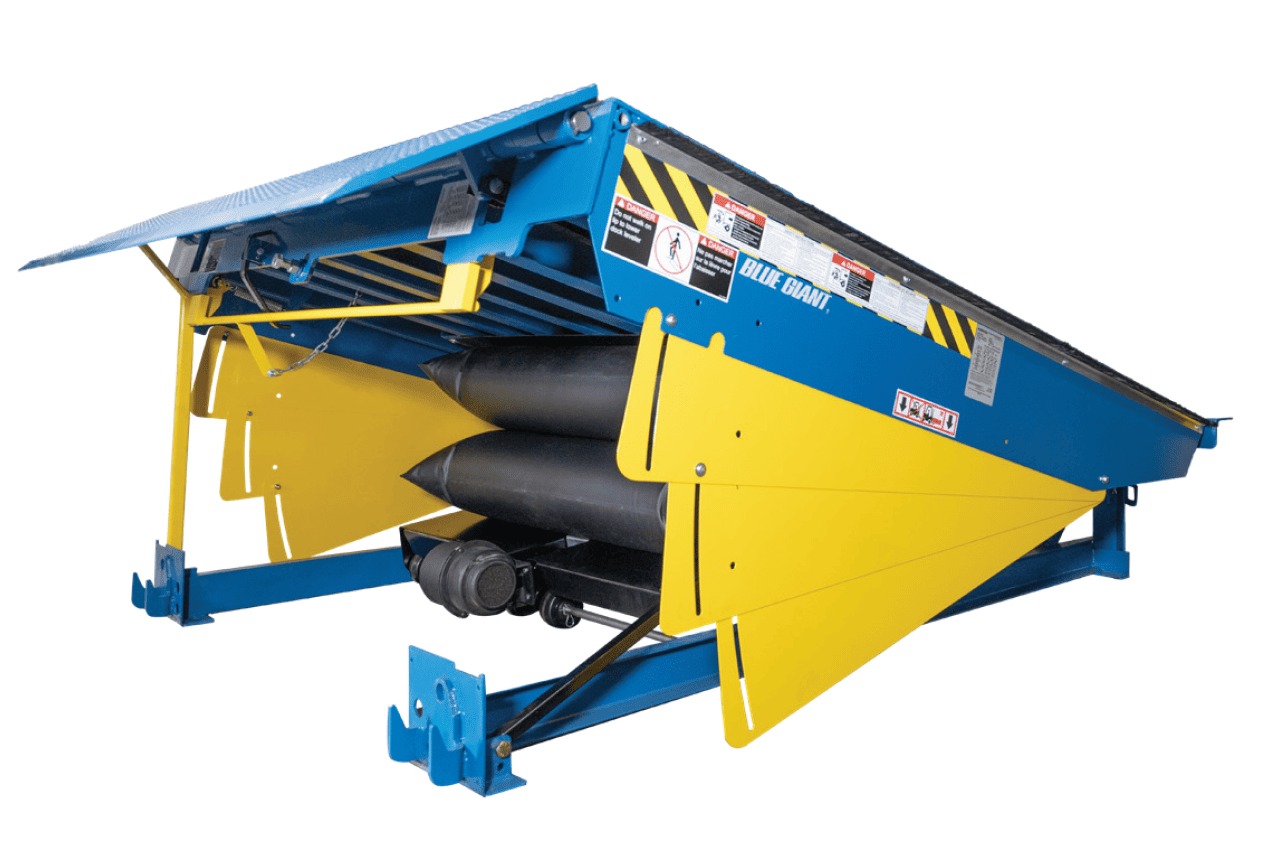

Air-Powered Dock Leveler

Air-Powered Dock Leveler

Overview

The Blue Giant Air-Powered Dock Leveler operates safely and efficiently under the toughest conditions: temperature extremes, heavy operations, and exposure to caustic substances.

Uses the industry-accepted total load class standard ANSI MH30.1 for ease of weight calculations and usage.

THE POWER OF AIR

Air-Powered performance is activated by a single push button control station, requiring no bending or pulling on the part of the operator. The blower motor inflates a two-stage airbag via high-volume, low-pressure (HVLP). After releasing the button, the bag deflates, setting the platform on the trailer bed. This air lifting system is an environmentally-friendly alternative to oil-powered hydraulics. A redesigned lip operation system provides positive powered deployment and automatic release when lowering on trailer bed or storing in parked position.

Contact Sales Contact Support

  • Finished using Blue Giant’s unique complete powder coating system for increased durability and longevity
  • PVC-coated polyester fibers make the airbag resistant to chemical or puncture damage
  • Mechanical fall-safe legs prevent platform free-fall, minimizing risk of worker injury and equipment damage
  • Platform flexes up to 4" (102 mm) under load, maintaining full-width contact between the lip and the truck bed
  • Optional DLB, traffic light system, and truck restraint options for a fully integrated loading dock safety system

  • Blue Genius® Touch Control Panel
  • Dock Lip Barrier
  • Vehicle restraint
  • Lights communication package

  • Workplaces emphasizing sustainability

  • 230V / 1PH / 50-60Hz blower motor
  • 18" (457 mm) and 20" (508 mm) long lips
  • Brush and rubber weather seals
  • Deeper frame options
  • Pour-in pan to facilitate new construction
  • New construction pit kit

  • Finished using Blue Giant’s unique complete powder coating system for increased durability and longevity
  • PVC-coated polyester fibers make the airbag resistant to chemical or puncture damage
  • Mechanical fall-safe legs prevent platform free-fall, minimizing risk of worker injury and equipment damage
  • Platform flexes up to 4" (102 mm) under load, maintaining full-width contact between the lip and the truck bed
  • Optional DLB, traffic light system, and truck restraint options for a fully integrated loading dock safety system

  • Blue Genius® Touch Control Panel
  • Dock Lip Barrier
  • Vehicle restraint
  • Lights communication package

  • Workplaces emphasizing sustainability

  • 230V / 1PH / 50-60Hz blower motor
  • 18" (457 mm) and 20" (508 mm) long lips
  • Brush and rubber weather seals
  • Deeper frame options
  • Pour-in pan to facilitate new construction
  • New construction pit kit

Related Products

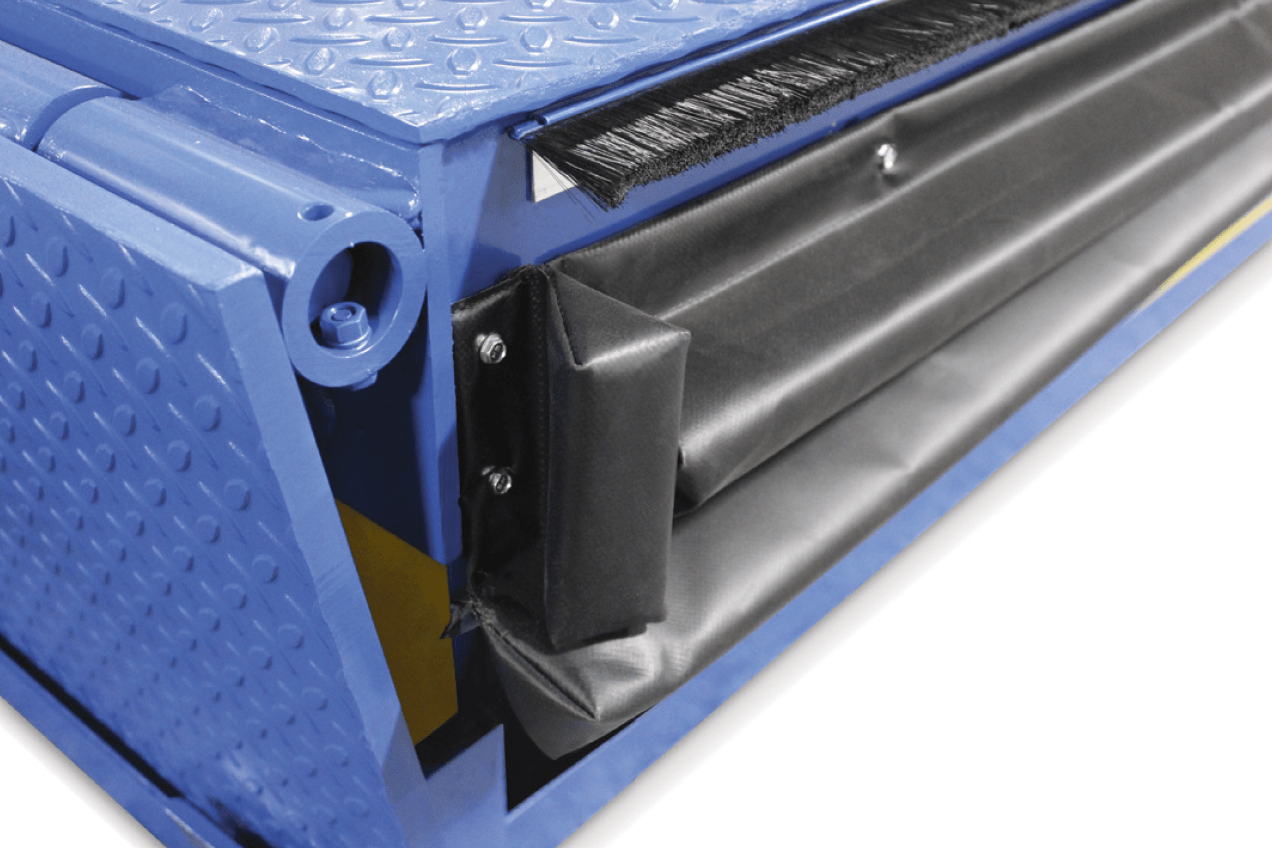

Energy Seal Plus
