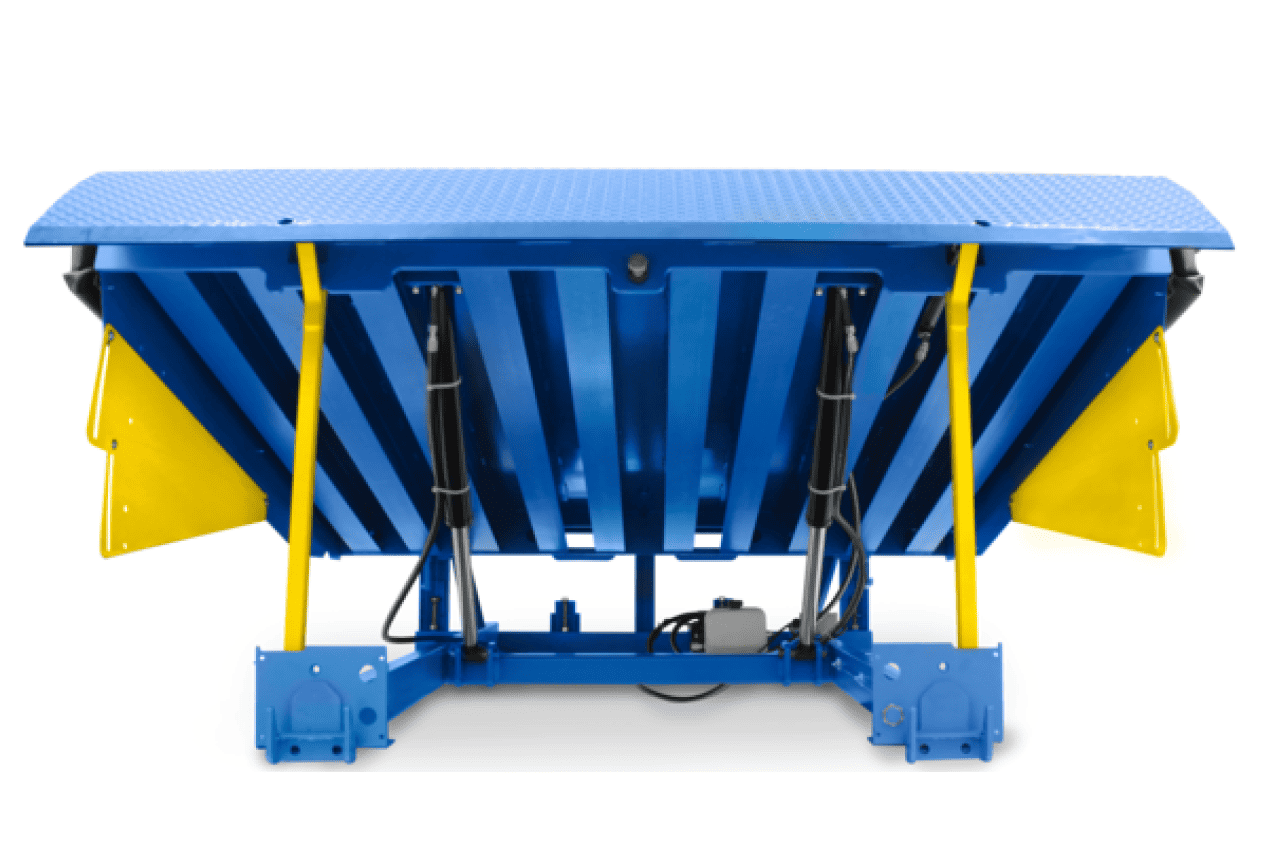

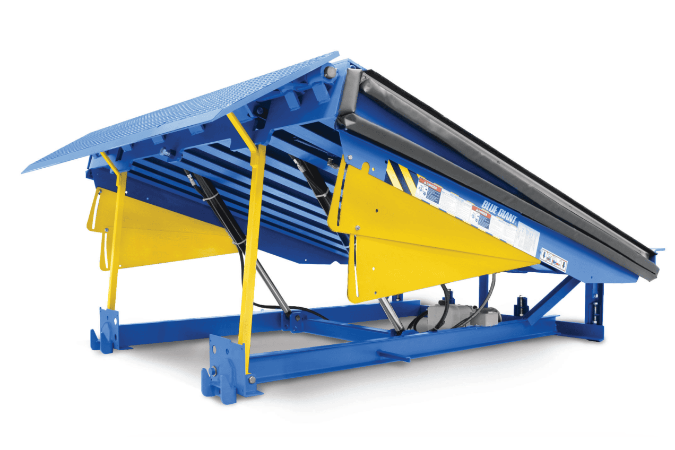

Hydraulic Dock Leveler

Overview

An impressive combination of usability and longevity, Blue Giant Hydraulic Dock Levelers are high-performance systems that operate at the touch of a button. Strategically welded enhanced J-beams provide an exceptional level of structural sturdiness, improving product lifetime.

Hydraulic deck and lip cylinders increase operating efficiency and reduce maintenance requirements, resulting in a significantly lower cost of ownership compared to mechanical units. Optional independent lip control is available for all models, decreasing both cycle time and energy use (Blue Genius® Touch Control Panel required).

Superior craftsmanship, ease of operation, and a robust suite of advanced safety features make the Blue Giant Hydraulic Dock Leveler an ideal choice for increased productivity at the loading dock.

STRUCTURAL INTEGRITY

Ten (10) enhanced J-beam channels are welded to the underside of the deck at dynamic impact points to prevent distortion and extend the lifetime of the dock leveler.
Contact Sales Contact Support

  • Platform flexes up to 4" (102mm) under load, maintaining full-width contact between the lip and the truck bed
  • Inverted deck cylinder self-bleeds continually, reducing internal corrosion and increasing velocity fuse efficiency
  • Continuous one-piece headboard system intensifies the strength of the deck’s front structure
  • High tensile J-beams allow the deck to flex side to side while maintaining back to front rigidity without distorting

  • Blue Genius® Touch Control Panel
  • Blue Giant Assured Motion Float
  • Vehicle restraint
  • Lights communication package

  • High-volume loads
  • Frequent usage (24-hour operations)
  • Fast-paced environments

  • 18” (457mm) and 20” (508mm) long lips
  • Brush and rubber weather seals
  • New construction pit kit
  • Pour-in pan to facilitate new construction
  • Environmentally friendly biodegradable oil

  • Platform flexes up to 4" (102mm) under load, maintaining full-width contact between the lip and the truck bed
  • Inverted deck cylinder self-bleeds continually, reducing internal corrosion and increasing velocity fuse efficiency
  • Continuous one-piece headboard system intensifies the strength of the deck’s front structure
  • High tensile J-beams allow the deck to flex side to side while maintaining back to front rigidity without distorting

  • Blue Genius® Touch Control Panel
  • Blue Giant Assured Motion Float
  • Vehicle restraint
  • Lights communication package

  • High-volume loads
  • Frequent usage (24-hour operations)
  • Fast-paced environments

  • 18” (457mm) and 20” (508mm) long lips
  • Brush and rubber weather seals
  • New construction pit kit
  • Pour-in pan to facilitate new construction
  • Environmentally friendly biodegradable oil
