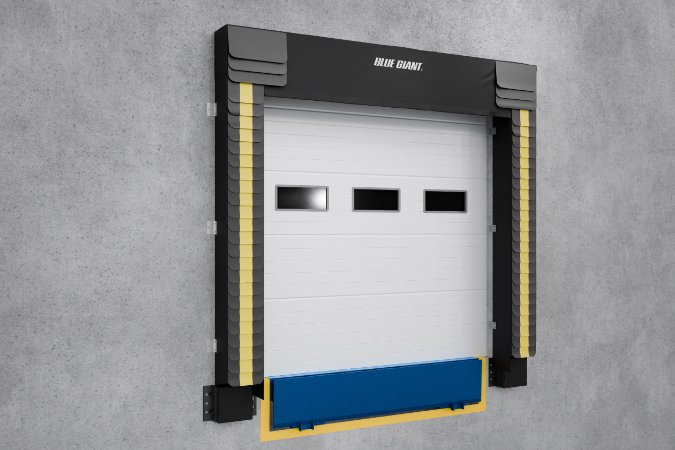

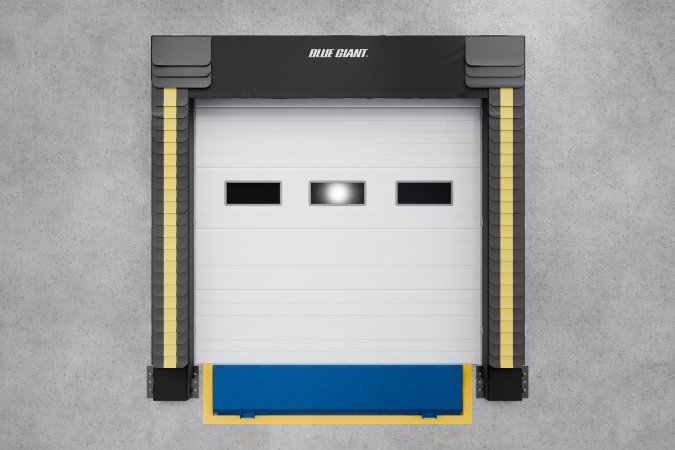

Fixed Head Pad

Overview

Designed to suit door openings up to 8' W x 8' H (2,438 mm x 2,438 mm) to 9' W x 9' H (2,743 mm x 2,743 mm), the Fixed Head Pad Dock Seal provides airtight protection when servicing trailers of consistent height.

When in use, the fixed head pad dock seal enables an energy-efficient seal that keeps facilities free of airborne contaminants, pests, and inclement weather conditions.
Contact Sales Contact Support

  • Two foam side pads and one foam head pad wrap around the trailer opening, eliminating the gap between the building and the trailer
  • Polyurethane foam compresses to conform to the trailer’s shape during use, and resumes its original size and shape upon completion
  • 18" (457 mm) corner pleats
  • Double-stitching on all seams
  • Tapered at bottom of pads to eliminate bumper pinch
  •  A wide range of durable fabrics is available to suit all application requirements

  • Fabric rain shroud
  • Pressure-treated lumber
  • PVC drop curtain
  • Velcro drop curtain
  • Steel backer

  • Companies and facilities with uniformly sized trailers, such as a truck fleet
  • Climate-controlled operations such as frozen food, groceries, and pharmaceuticals

  • 18" (457 mm) head pad
  • 12" (305 mm) header drop curtain with Velcro
  • Header flaps across entire head pad
  • Bottom flaps on verticals
  • Full height yellow guide stripe
  • Replaceable flaps
  • Double layer
  • Soft foam
  • Skid guard

  • Two foam side pads and one foam head pad wrap around the trailer opening, eliminating the gap between the building and the trailer
  • Polyurethane foam compresses to conform to the trailer’s shape during use, and resumes its original size and shape upon completion
  • 18" (457 mm) corner pleats
  • Double-stitching on all seams
  • Tapered at bottom of pads to eliminate bumper pinch
  •  A wide range of durable fabrics is available to suit all application requirements

  • Fabric rain shroud
  • Pressure-treated lumber
  • PVC drop curtain
  • Velcro drop curtain
  • Steel backer

  • Companies and facilities with uniformly sized trailers, such as a truck fleet
  • Climate-controlled operations such as frozen food, groceries, and pharmaceuticals

  • 18" (457 mm) head pad
  • 12" (305 mm) header drop curtain with Velcro
  • Header flaps across entire head pad
  • Bottom flaps on verticals
  • Full height yellow guide stripe
  • Replaceable flaps
  • Double layer
  • Soft foam
  • Skid guard

Related Products

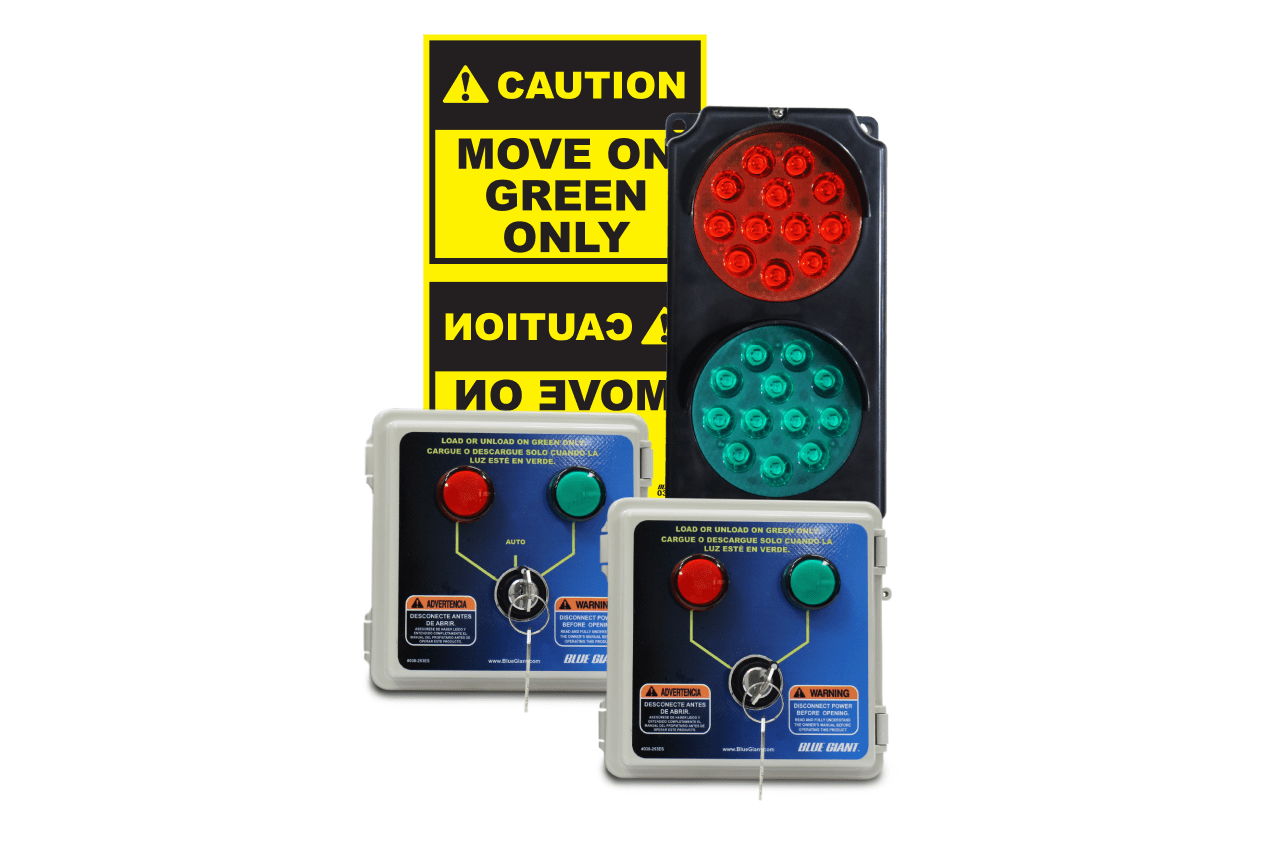

Manual - TLC24-M
Manual - TLC24-M
Use a keyed selector switch to manually change interior and exterior lights. Low-profile, weatherproof, and impact-resistant control box.
More
Bug Screen Doors
Bug Screen Doors
Our bug screen doors provide a durable and effective solution for keeping pests out while allowing fresh air to flow freely into your space.
More

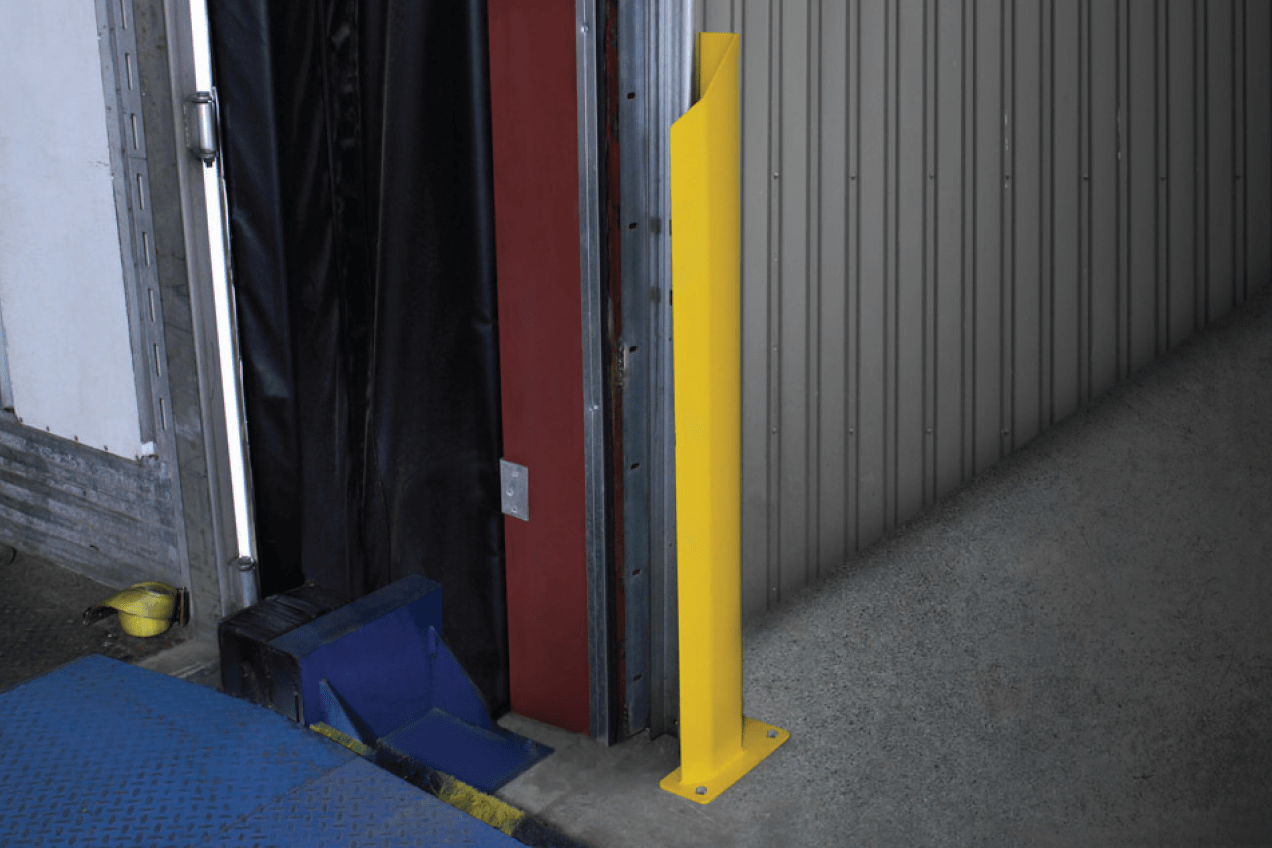

Door Track Guards
