EPT-33-4W

EPT-33-4W

Overview

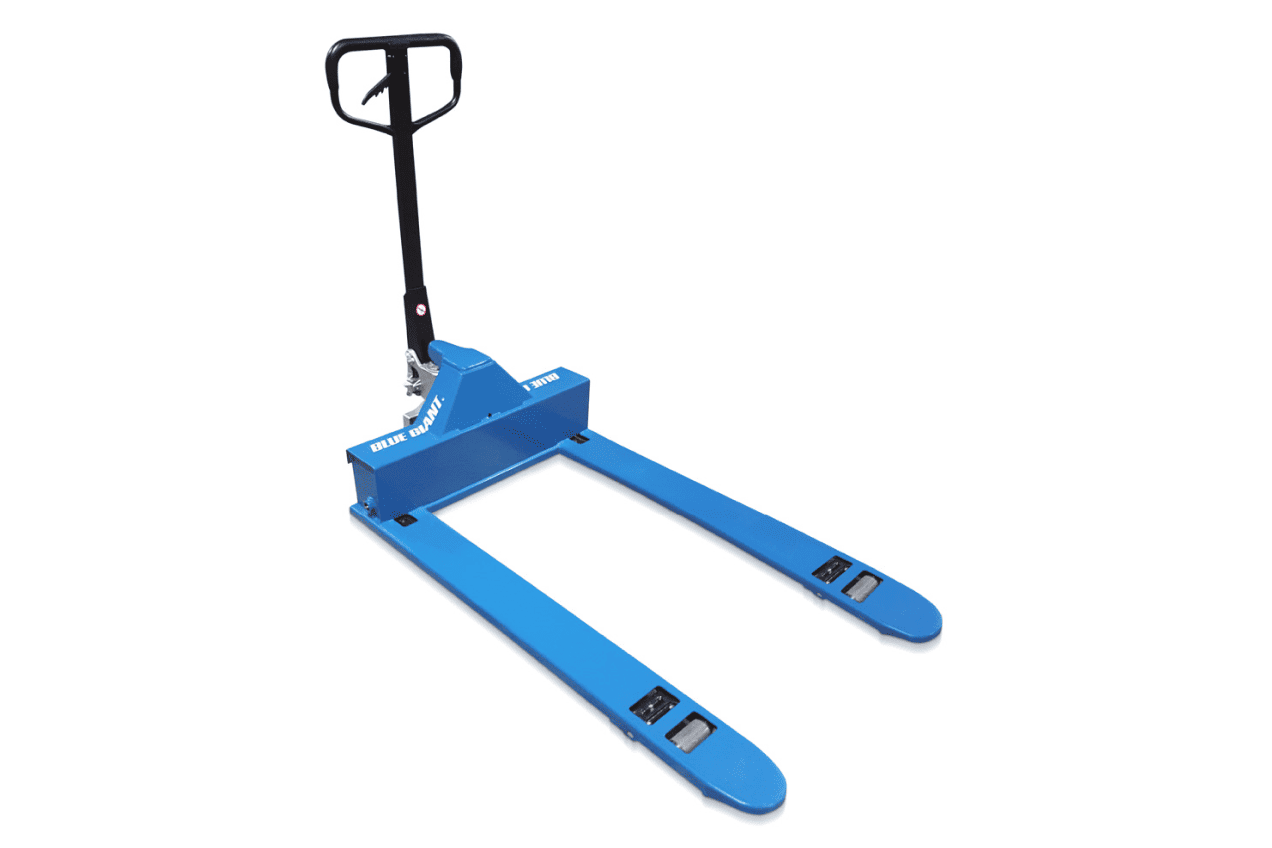

The EPT-33-4W Manual Pallet Truck is designed to handle four-way pallets and offers a 220-degree steer arc for excellent maneuverability in tight locations. Each unit comes with a polyurethane steer wheel and steel load rollers for easy travel.
Contact Sales Contact Support

CAPACITY

  • 3,300 lb (1,497 kg)

PERFORMANCE

  • 200-degree operational arc
  • Eight full strokes to reach maximum elevated height of 5.5" (138 mm)
  • 2" (51 mm) lowered fork height
  • Polyurethane steer wheel and steel load rollers
  • Features a powder coat paint and robotic welds throughout
  • Washdown compatible

ERGONOMICS

  • Control handle has three position (raise/neutral/lower) fingertipcontrol. Ergonomically designed and free of pinch points.
  • Comfort grip handle
  • Strong spring returns the handle to an upright position once released

STRUCTURAL INTEGRITY

  • Fork size: 33" x 48" (838 mm x 1,219 mm) standard
  • Tapered forks and entry and exit rollers support smooth pallet handling
  • Galvanized hydraulic pump with overload relief valve
  • Braking can be actuated by both hand and foot-controlled release
  • Heavy-duty frame is constructed from a one-piece formed channel
  • Tapered forks and entry and exit rollers allow for smooth pallethandling
  • Adjustable push rods make roller height adjustment easier
  • Cast-iron hangers for greater strength and longevity
  • Helper rollers for easy exit and entry of pallets
  • Hangers are constructed of cast iron for greater strength andlongevity

  • Any location where four-way palletized loads need to be transported

CAPACITY

  • 3,300 lb (1,497 kg)

PERFORMANCE

  • 200-degree operational arc
  • Eight full strokes to reach maximum elevated height of 5.5" (138 mm)
  • 2" (51 mm) lowered fork height
  • Polyurethane steer wheel and steel load rollers
  • Features a powder coat paint and robotic welds throughout
  • Washdown compatible

ERGONOMICS

  • Control handle has three position (raise/neutral/lower) fingertipcontrol. Ergonomically designed and free of pinch points.
  • Comfort grip handle
  • Strong spring returns the handle to an upright position once released

STRUCTURAL INTEGRITY

  • Fork size: 33" x 48" (838 mm x 1,219 mm) standard
  • Tapered forks and entry and exit rollers support smooth pallet handling
  • Galvanized hydraulic pump with overload relief valve
  • Braking can be actuated by both hand and foot-controlled release
  • Heavy-duty frame is constructed from a one-piece formed channel
  • Tapered forks and entry and exit rollers allow for smooth pallethandling
  • Adjustable push rods make roller height adjustment easier
  • Cast-iron hangers for greater strength and longevity
  • Helper rollers for easy exit and entry of pallets
  • Hangers are constructed of cast iron for greater strength andlongevity

  • Any location where four-way palletized loads need to be transported
