FPT-55

FPT-55

Overview

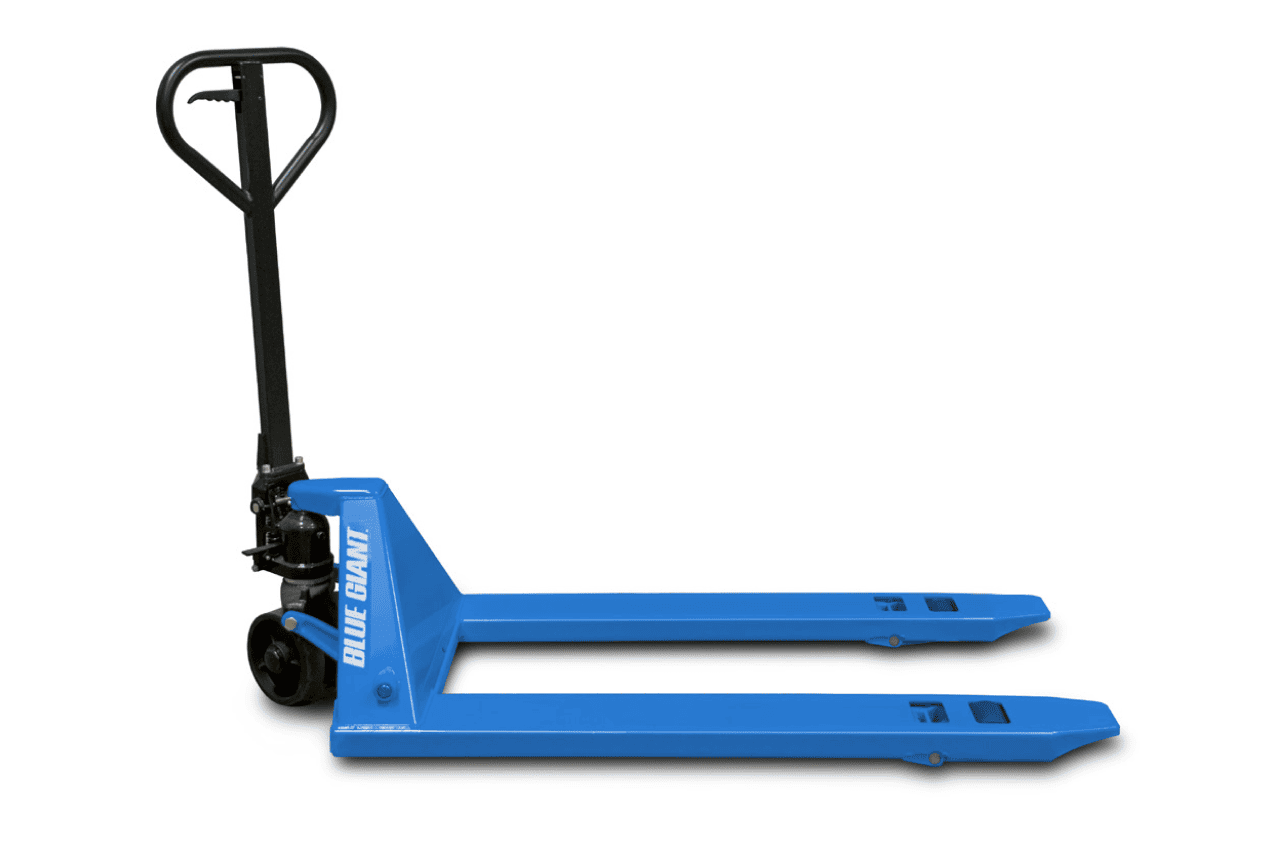

The FPT-55 Manual Pallet Truck is rugged yet lightweight, making it capable of meeting and exceeding the toughest cargo handling demands. (Only available in the U.S.)
Contact Sales Contact Support

CAPACITY

  • 5,500 lb (2,487 kg)

PERFORMANCE

  • 180-degree operational arc for excellent maneuverability
  • Thirteen full strokes to reach maximum height of 7.8" (198 mm)
  • Simple and precise steering control and lift / lower functions
  • Climber rollers for easy entry into pallets
  • Lowering can be actuated by hand or foot pedal release

ERGONOMICS

  • Large hand grip with curvilinear design and additional padding for easy and comfortable hold
  • Three position control lever (lift, neutral, lower) for fingertip control
  • Strong spring returns the handle to an upright position once released

STRUCTURAL INTEGRITY

  • Fork size: 27" x 48" (686 mm x 1,219 mm) standard
  • Tapered forks and entry and exit rollers support smooth pallet handling
  • Heavy-duty frame is constructed from a one-piece formed channel
  • Adjustable push rods make roller height adjustment easier
  • Cast-iron hangers for greater strength and longevity
  • Grease fitting and pushings at all pivot points for easy maintenance

  • Warehouses, grocery stores, retail establishments, and other locations where palletized loads need to be transported.

  • 20 ½" x 48" (521 mm x 1,219 mm) forks
