EPJ-40

Overview

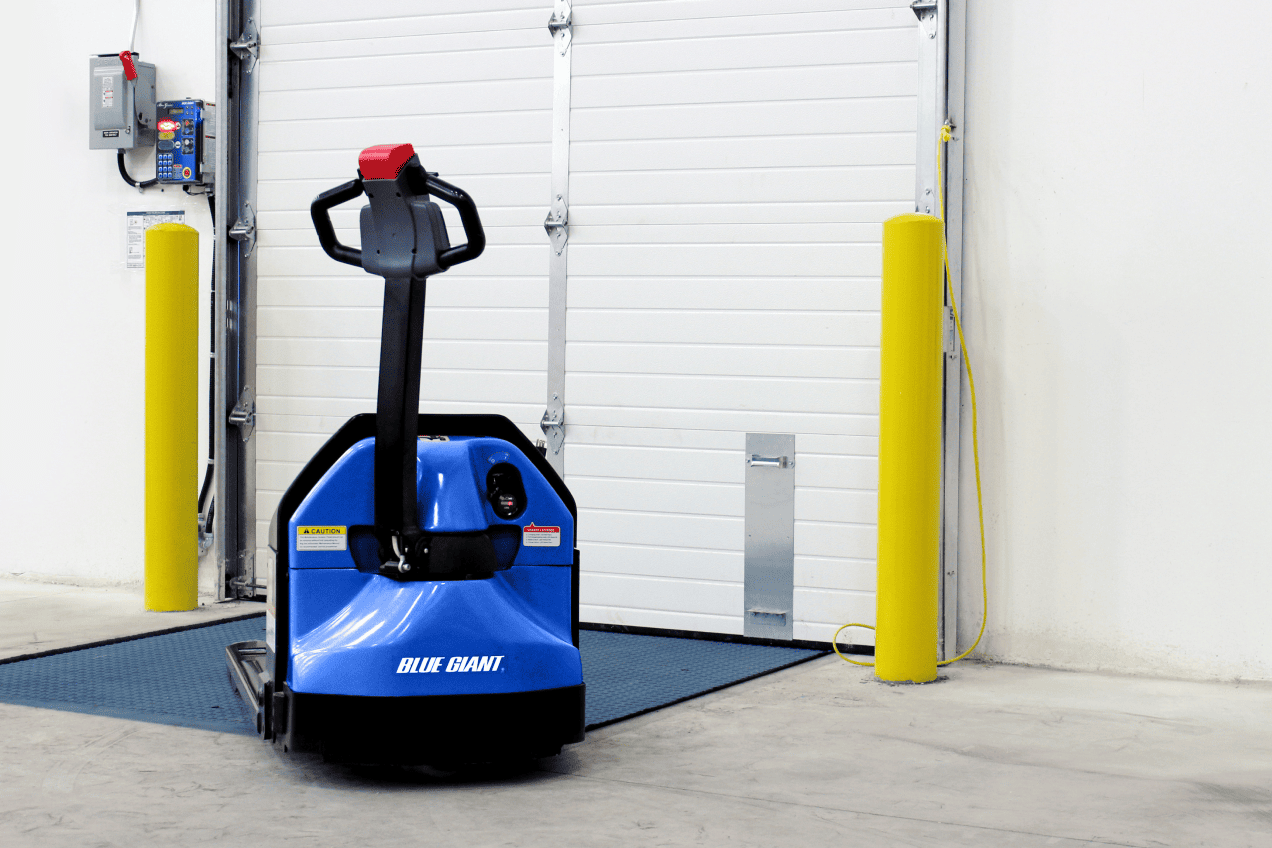

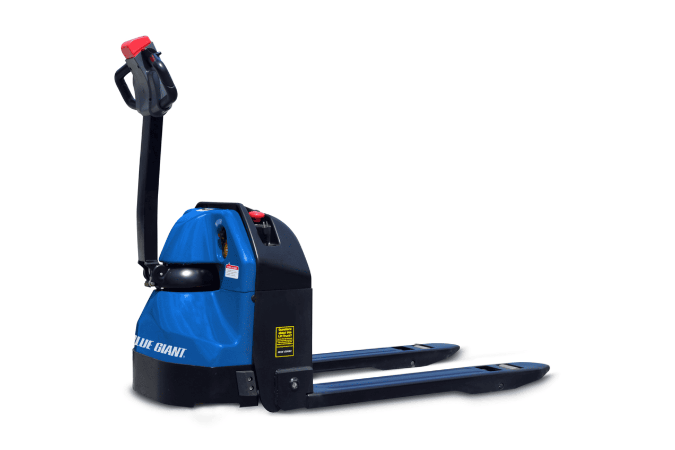

The EPJ-40 Powered Pallet Truck was designed specifically to address the unique demands of lift gate and local delivery applications. More compact than a regular powered pallet truck, it supports easier maneuverability when working in loaded trailers.
Contact Sales Contact Support

CAPACITY

  • 4,000 lb (1,818 kg)

PERFORMANCE

  • Vertically-mounted AC drive motor delivers steady acceleration and travel speeds
  • 24V ZAPI ACO Travel Controller supports simple and precise truck positioning
  • Electric travel, lift and lower controls (located on the handle) are designed to allow unit operation with either hand
  • The electromagnetic braking system delivers reliable frictionless braking even during extended and heavy use
  • Tapered and compact forks support greater maneuverability
  • Travel speed: 3.6mph (unloaded) and 3.3mph (loaded)

ERGONOMICS

  • Multi-function control handle incorporates butterfly-style thumb controls, reversing switch, and horn button for ease of use
  • Hand grips fit the operator's hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

  • Fork size: 27" x 45" (635 mm x 1,143 mm) standard
  • Two 12V AGM 85 AH maintenance-free batteries with 10AMP 110VAC plug-in charger
  • Hydraulic pump with overload relief valve
  • High-strength service cover protects internal components from impact damage
  • Emergency brake with power cut-off heightens safety levels.

  • Warehouses
  • Storage facilities
  • Retail outlets
  • Beverage distribution
  • Frozen food storage
  • Pharmaceuticals
  • Chemical handling and processing facilities

  • 22" (559 mm) and 36" (914 mm) forks
  • 48" (219 mm) and 60" (1,524 mm) back rest for chassis
  • Stability casters
  • Tool tray with load restraint
