EPS-30

EPS-30

Overview

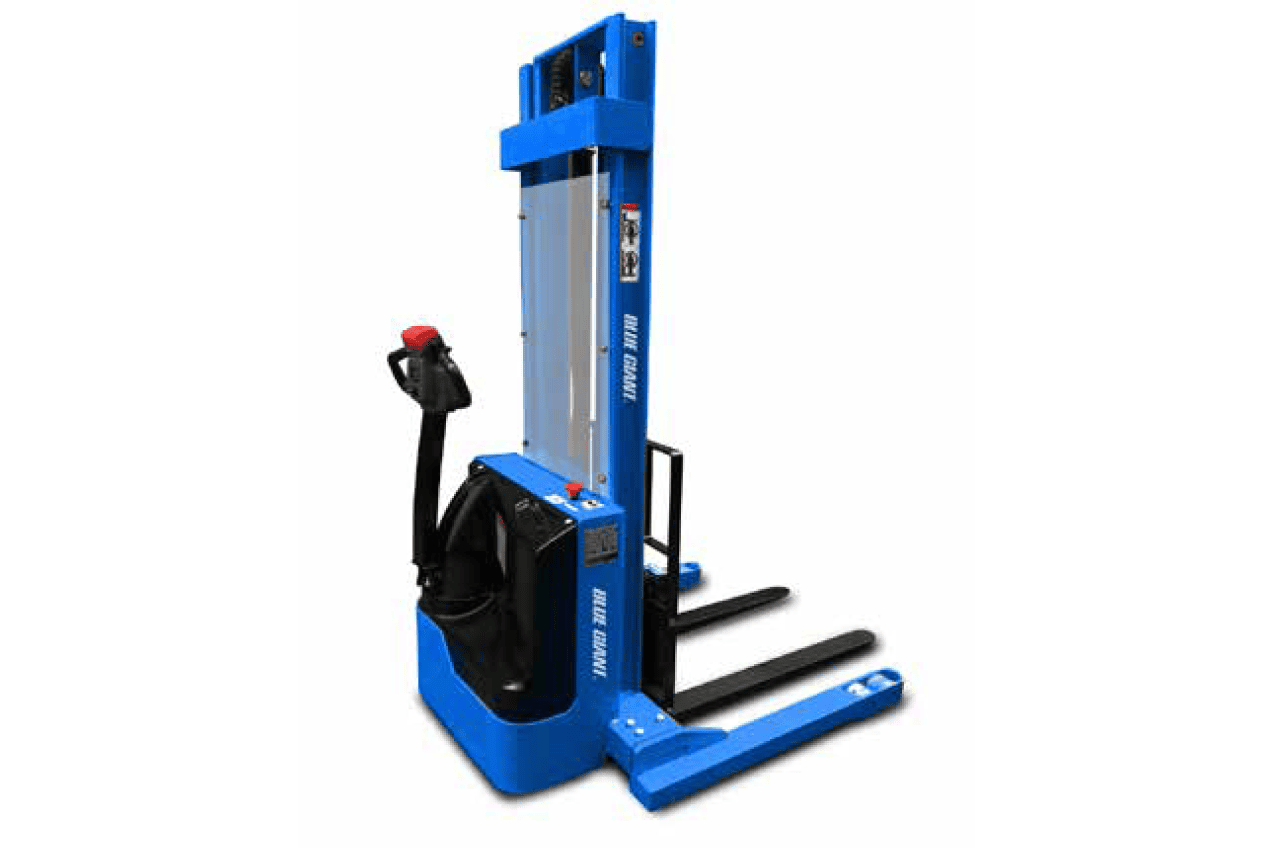

The EPS-30 Powered Drive Straddle Truck has a compact design to support general material handling, stacking, and work positioning in tight areas.
Contact Sales Contact Support

CAPACITY

  • 3,000 lb (1,361 kg)

LIFT HEIGHT

  • 128" (3,251 mm)

PERFORMANCE

  • 24-volt maintenance-free batteries with direct connect 110A 110VAC plug-in automatic charger
  • S22-128 (2)12V 100AH
  • Travel speed: 3.2mph (unloaded) and 3.0mph (under load)

ERGONOMICS

  • Travel, lift, and lower functions are located in the ergonomic operator handle
  • All operator controls are accessible without having to lift the hand from the handle
  • Angle grips allow easy operation with either hand
  • Standard wrap around guard, reversing switch, thumb control, and horn
  • Low mounted steer arm offers excellent operator comfort and minimum steering effort

STRUCTURAL INTEGRITY

  • Fork size: 27" x 42" (686 mm x 1,143 mm) standard
  • Tapered forks and entry and exit rollers support smooth pallet handling
  • Galvanized housing with sturdy construction
  • Telescoping mast includes a plexiglass mast guard and provides a 128" (3,251 mm) maximum fork elevation with a single cylinder
  • 4" (102 mm) wide adjustable straddle legs allow for configurations to fit various sized pallets
  • Durable powder coat paint
