BGL30/35

BGL30/35

Overview

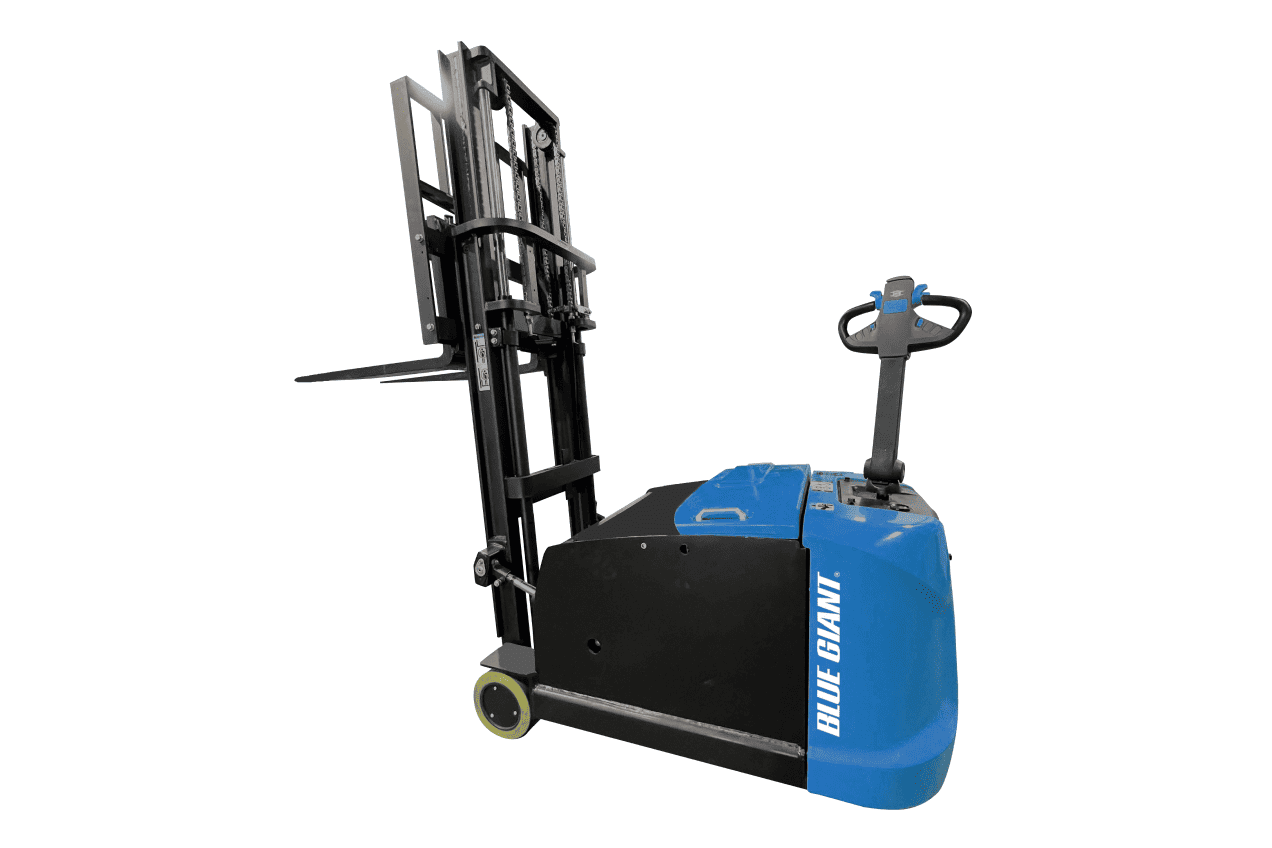

The BGL30/35 Walkie Counterbalanced Stacker stacks and transports palletized loads that straddle stackers or reach trucks cannot carry and position as efficiently. A power steering system provides easy and ergonomic vehicle control.
Contact Sales Contact Support

CAPACITY

  • 3,000 lbs. & 3,500 lbs. at 24” load center

LIFT HEIGHTS

  • 104" (2,642 mm)
  • 126" (3,200 mm)
  • 157" (3,988 mm)

PERFORMANCE

  • AC drive motor delivers steady acceleration and travel speeds
  • 24V ZAPI travel controller supports simple and precise truck positioning
  • Travel speed is reduced when forks are above basic carry height
  • Electromagnetic brake resists rollback on ramps
  • Pressure compensated lowering valves regulate lowering speeds
  • Travel speed: 3.2mph (unloaded) and 3.0mph (under load)

ERGONOMICS

  • Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand
  • Wrap around hand guard, reversing switch, dual butterfly thumb controls, and horn are standard

STRUCTURAL INTEGRITY

  • 24" (610 mm) load center
  • Fork size: 42" (1,067 mm) standard
  • 36" (914 mm) tall load backrest
  • High visibility I-beam mast

  • Warehouses
  • Storage facilities
  • Retail outlets
  • Beverage distribution
  • Frozen food storage
  • Pharmaceuticals
  • Chemical handling and processing facilities

  • 24V industrial battery, 510 amp hour
  • Industrial charger for 115/1/60 output
  • Industrial charger for 230/1/60 output
