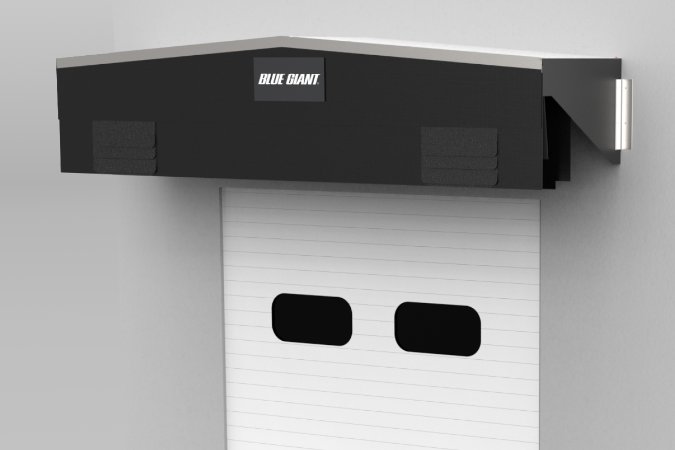

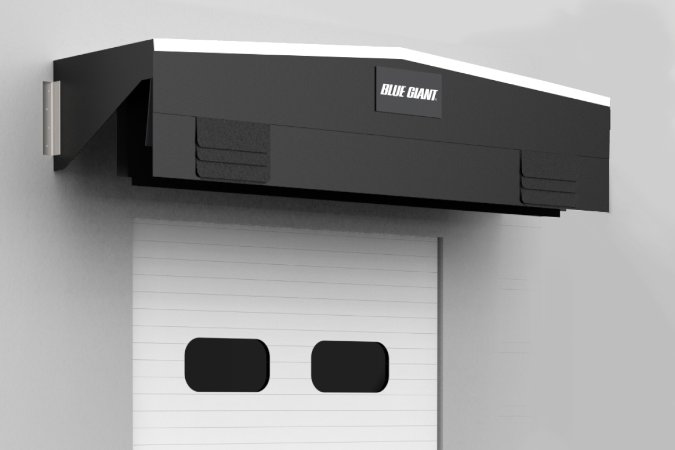

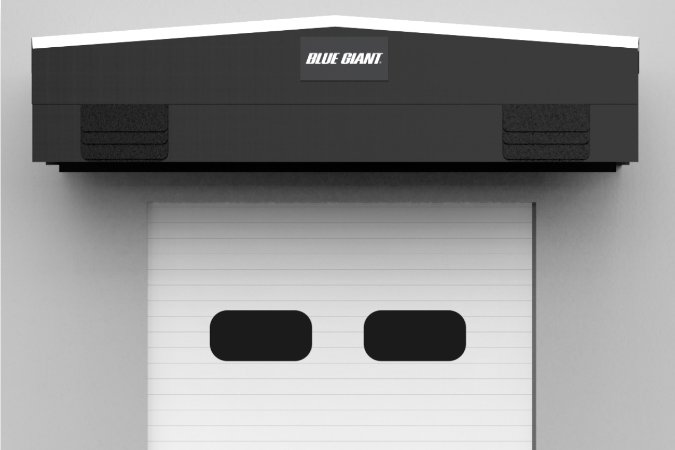

Rain Shroud Max
Overview
When water infiltrates a loading dock area, wet and slippery floors create unsafe working conditions. Rain Shroud Max effectively diverts rain and harsh weather away from the dock, keeping the loading area dry and safe.Rain Shroud Max can be installed as a standalone unit or integrated seamlessly with existing dock setups to keep rainwater out of the traffic zone. Its self-adjusting weighted foam pad ensures a tight seal rainwater and accommodates up to 12-inch variance in trailer heights, providing effective coverage and allowing customization based on specific dock requirements.
This economical design is virtually maintenance-free with no mechanical parts. The steel structure with PowderCoat™ finish and galvanized top sheet offers superior protection against rust and corrosion.
Rain Shroud Max conforms to deformities on a trailer’s surface, preventing leakage. A reinforced top steel bar creates a tight seal and boosts curtain strength.
- Dimensions: 120” wide x 30” projection with an 18” drop
- Pivoting foam pad minimizes impact stress on the header, and reduces wear
- Reinforced wear flaps on the head curtain
- Roof framing with PowderCoatTM square tubing, engineered to enhance structural strength
- Steel header frame with PowderCoatTM and galvanized top sheet metal
- Pitched roof effectively diverts water to the sides
- Double-layered curtain for increased material life expectancy
- Pre-drilled frame for ease of installation
- Galvanized mounting brackets and hardware
- Galvanized header frame
- Wide range of durable TearResistTM, TearResistTM Flex, and ArmorShieldTM fabrics
- Suitable for all inclement-weather applications
- Snow load supports (pair)
- Additional drop on the weighted foam pad to accommodate various truck and trailer heights
- Anchor screws
Related Products

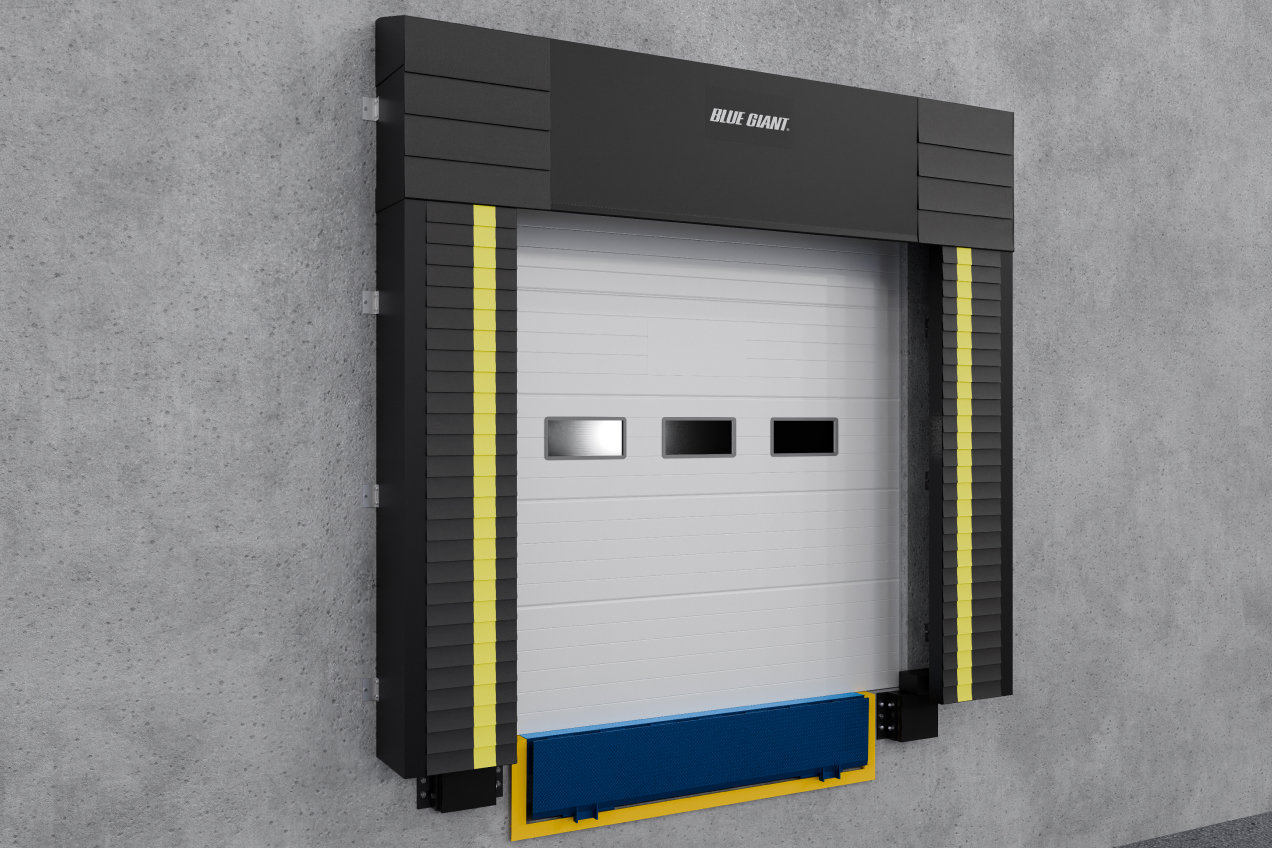

Full Access
Allows trucks to back through the vertical pads, creating a tight seal. Velcro split head curtain adjusts over top of the truck for full interior access.
More
Reflective Guides
Ensure safer, more precise truck positioning at loading docks with reflective guides. Easy to install, cost-effective, and operates without electricity.
More

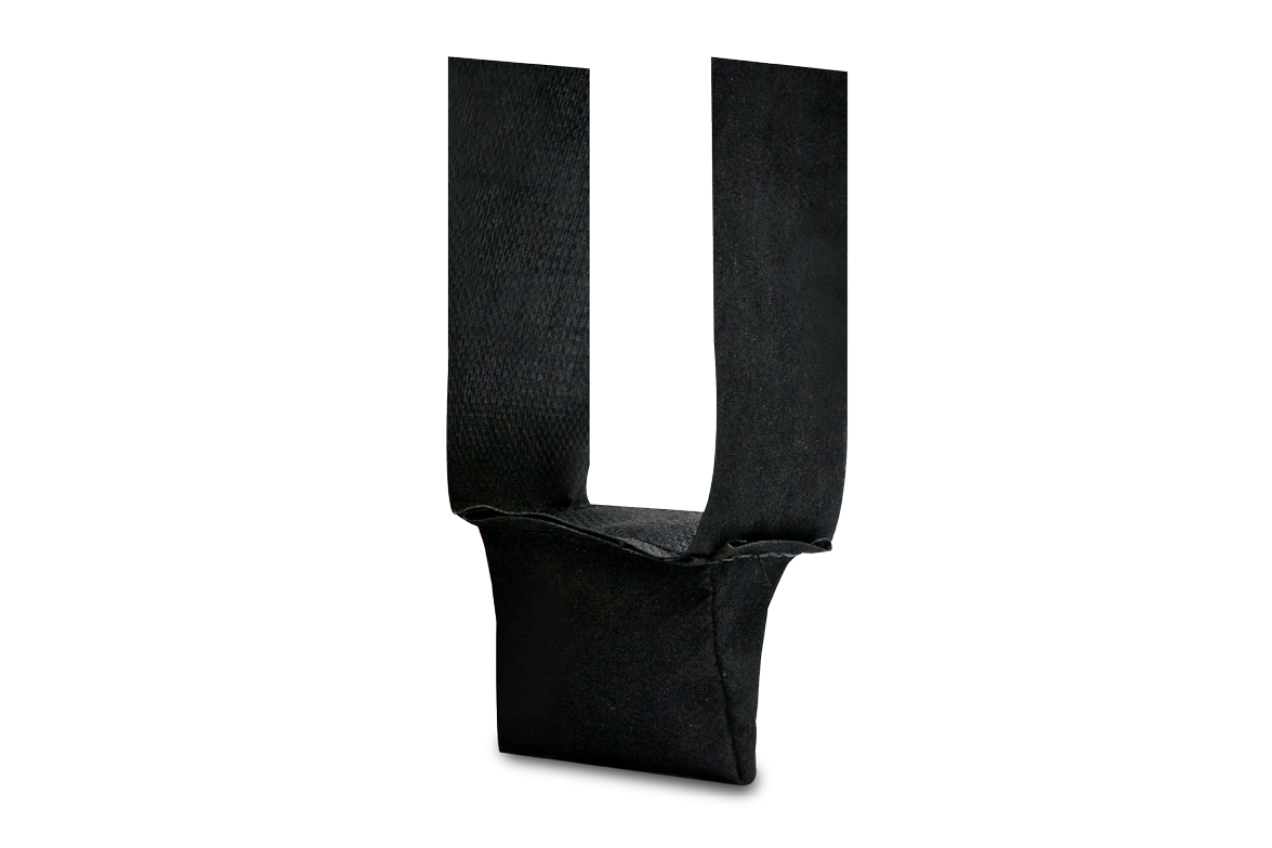

Leveler Seal Wedges
